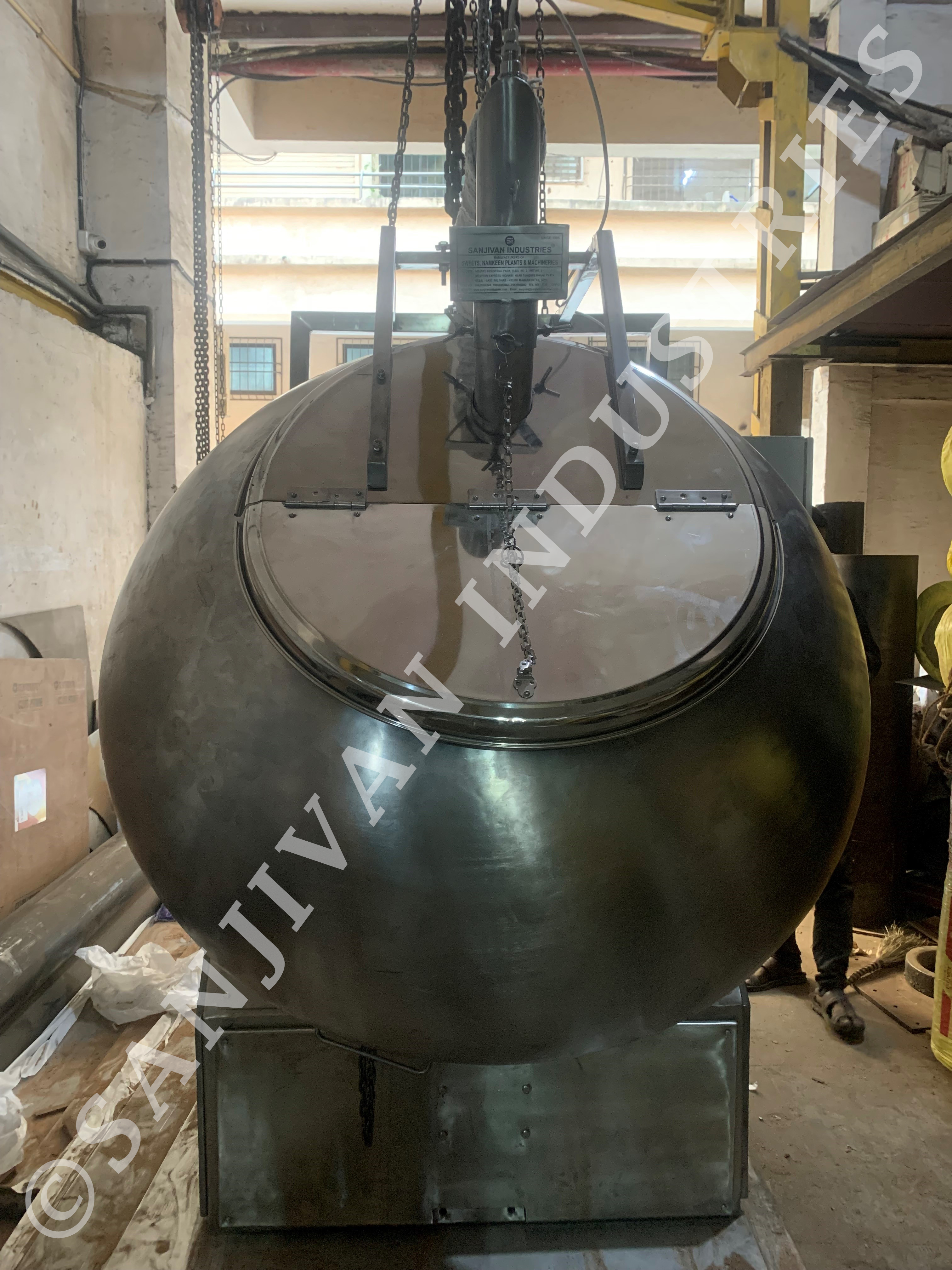

Roasting Coating Pan

Capacities :1 GONI TO 5 GONI
Additional applications :
  • ➼ KURKURE, KURMURA, CHEESE BALL, POHA ROASTING MASALA COATING
    • Descriptions :
  • ➼ S.S 304 (8% Nickel) HOT AIR, THIRMIC HEATED & LPG CYLINDER
  • ➼ All fitting like MOTOR & GEAR BOX WITH ELECTRIC PANNAL.
    • Our range of tablet coating pans is extensively used for sugar and film coating of tablets, pallets and granules. The unit comprises of ellipsoidal shaped pan fabricated using stainless steel sheet and mounted on the gearbox shaft, which is driven by an electric motor. These tablet coating pan are available in standard and GMP model with SS 304 or 316 contact parts.
    Features:
  • ➼ The complete drive unit is enclosed in a sturdy cabinet.
  • ➼ Hot air blower with flexible SS Pipe heaters are provided with thermostat control for fast drying
  • ➼ Heaters are interlocked with the blower motor therefore unless the blower is on, heater does not start.

    		•  WIN-12
    		 WIN-24
    		 WIN-36
    		 WIN-42
    		 WIN-48
    		 WIN-60
    		 WIN-72
     Loading Capacity in Kg 8  45  80  100  150  210  275
    Motor H.P.  0.5  1  1  3  3  5  5
    Rpm of Pan  10/30/90  10/30/90   10 to30
    		 10 to 25  10 to 25   10 to 12 8 & 10
    Blower Motor H.P.   0.25 0.33  0.33   0.33  0.33 1  1
     Blower Capacity (Max. CFM) 50/100  50/100  100/150  100/150    150/200  250/400   350/400
    Heater Capacity in K.W.  0.5   1 1.5  3  3

    Chocolate Coating Pan Range

    Conventional rotary pans are extremely versatile and can be used for coating and polishing a wide range of products such as nuts, dried fruit, licorice centers, jelly beans etc, using chocolate masses or sugar solution coatings.
    These machines can be supplied in either copper or stainless steel construction, and in ‘onion’ or ‘tulip’ shapes.
    We supply machines either with a fixed angle base, or with variable angle from 0-80%. The variable angle pan has a motorized tilt unit and scale to indicate the angle.
    The pans can be supplied with a fixed speed, 3 speed, or variable drive mechanisms depending on the Client’s preference. The pans can be rotated in clockwise or anti-clockwise directions.
    Technical Specifications:
    Pan rotation speed 25/30/35rpm (3 speed)
    15-40rpm (vari-speed pulley)
    20-50rpm (Inverter)
    Pan drive motor 0.8kw
    Tilt drive motor 0.4kw
    Hot air blowers 4.5kw heaters. Temperature range from ambient up to 70° C.
    Air blower variable from 1 to 4.5m³/min. Filter supplied.
    Cold air blowers As above with heaters off.
    Optional extras:
  • ➼ 2 piece cover for pan aperture
  • ➼ Sound insulation
  • ➼ Digital display for rotation speed
  • ➼ Dust extraction unit
  • ➼ Syrup preparation and spray units
  • ➼ Chocolate preparation and spray units
